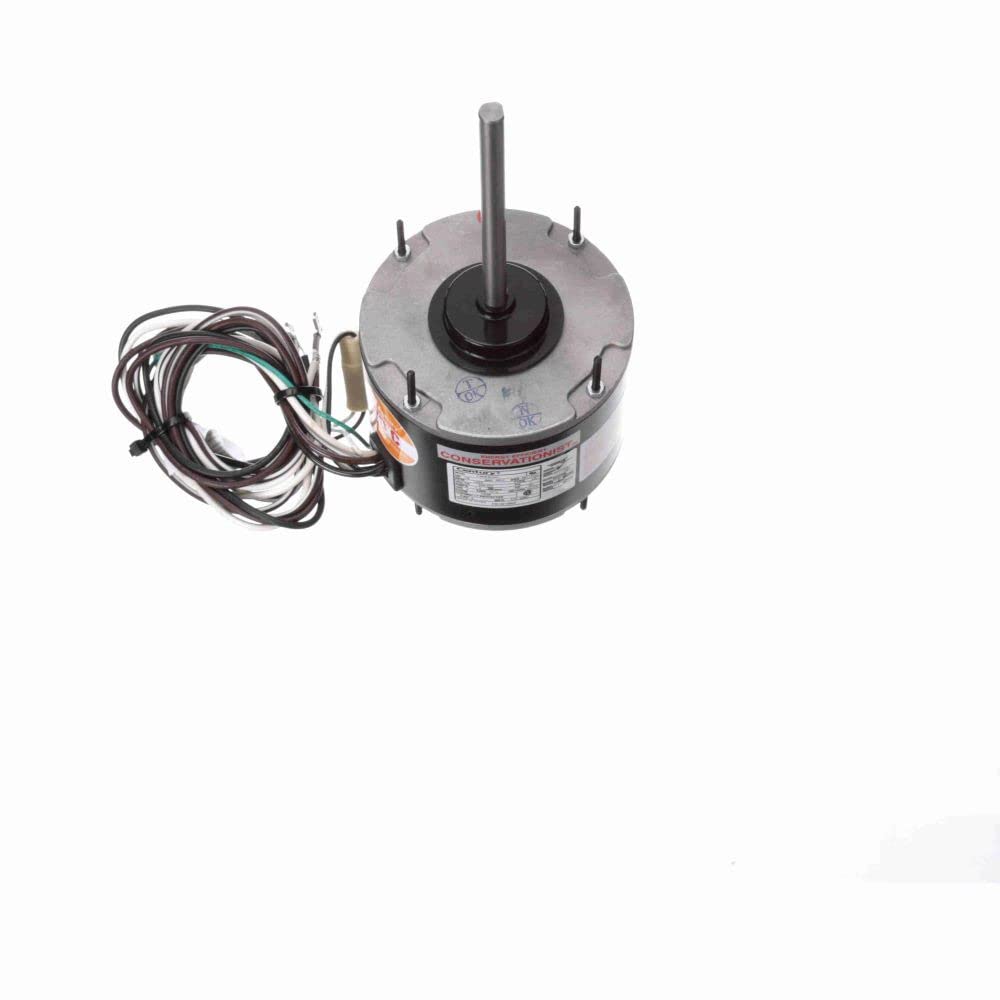

1/4 HP Condenser Fan Motor 1075 RPM 1.9" Shaft - Replacement for AC Units & Heat Pumps - Durable HVAC Cooling System Component for Home & Commercial Use

'Condenser Fan Motor,Motor Design Permanent Split Capacitor,Motor Enclosure Design Totally Enclosed Air-Over,1/4 HP,RPM Range 1001-1100,Nameplate RPM 1075,Voltage 208-230,48 Frame,Number of Speeds 1,Overall Length 10-7/8 In.,Shaft Length 6-1/2 In.,Shaft Orientation All Angle,Features Extended Thru-Bolts,Motor Shaft Rotation CW/CCW,Full Load Amps 1.9,Stud Motor Mounting Type,Thermal Protection Auto,Insulation Class F,Service Factor 1.0,Bearings Ball'

Price For Each Phase 1 Motor Service Factor 1.00 Item Condenser Fan Motor Motor Sub Application Condenser Fan Motor Application HVAC/R Motor Design Permanent Split Capacitor Motor Thermal Protection Auto Motor Enclosure Design Totally Enclosed Air-Over Hz 60 No. of Speeds 1 Motor Shaft Rotation CW/CCW Voltage Compatibility 115/208-230, 208-230, 208-240

Features Extended Thru-Bolts Standards UL Recognized (E46412), CSA Certified (LR43341) Overall Length 10-7/8" RPM Range 1001-1100 Max. Ambient Temp. 80 Degrees C Lead Length 48" Length Less Shaft 4-3/8" Duty Continuous Shaft Dia. 1/2" Capacitor Required 2MDV4 Mounting Stud Pattern 3-5/8" x 3-5/8" Stud Size 8-32 Nameplate RPM 1075 Ins. Class F Stud Quantity 4 HP 1/4

Motor Bearings Ball Body Dia. 5-11/16" Full Load Amps 1.9 Motor Shaft Design Double-Flat Frame 48 Motor Mounting Position All Angle Motor Mounting Type Stud Voltage 208-230 Application Condenser Fan Shaft Length 6-1/2" Bolt Circle Dia. 5-5/32" Country of Origin (subject to change) China
