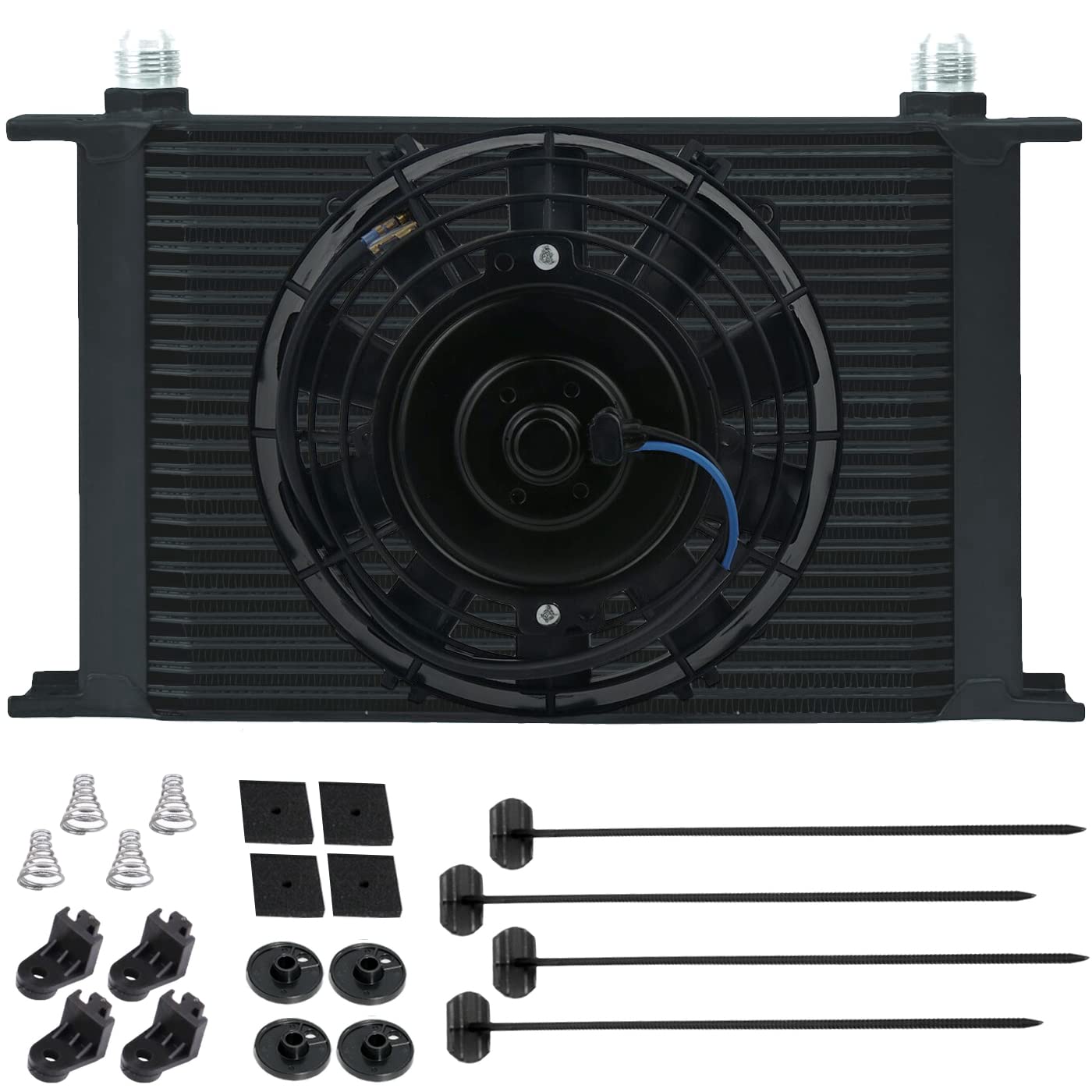

25 Row Transmission Oil Cooler with 6" Electric Fan & Toggle Switch Wiring Kit - Heavy Duty Cooling for Trucks, RVs & Performance Vehicles

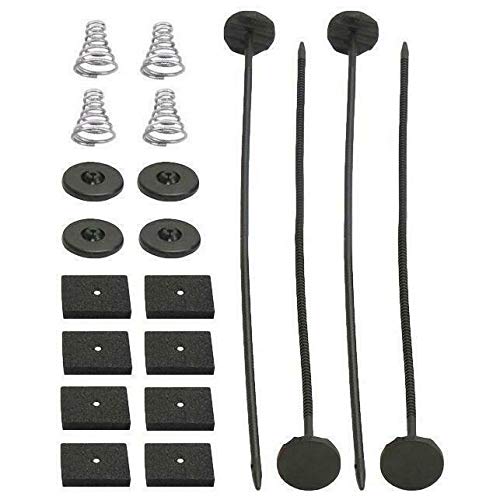

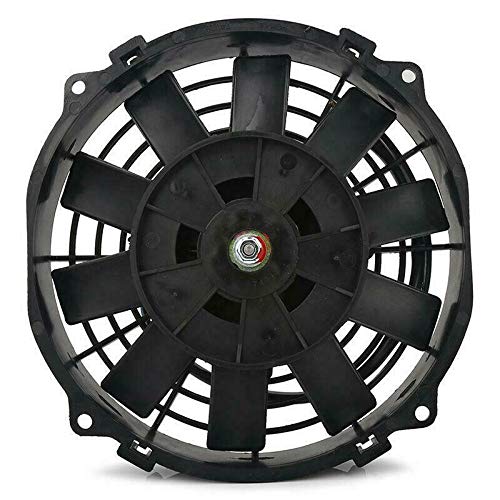

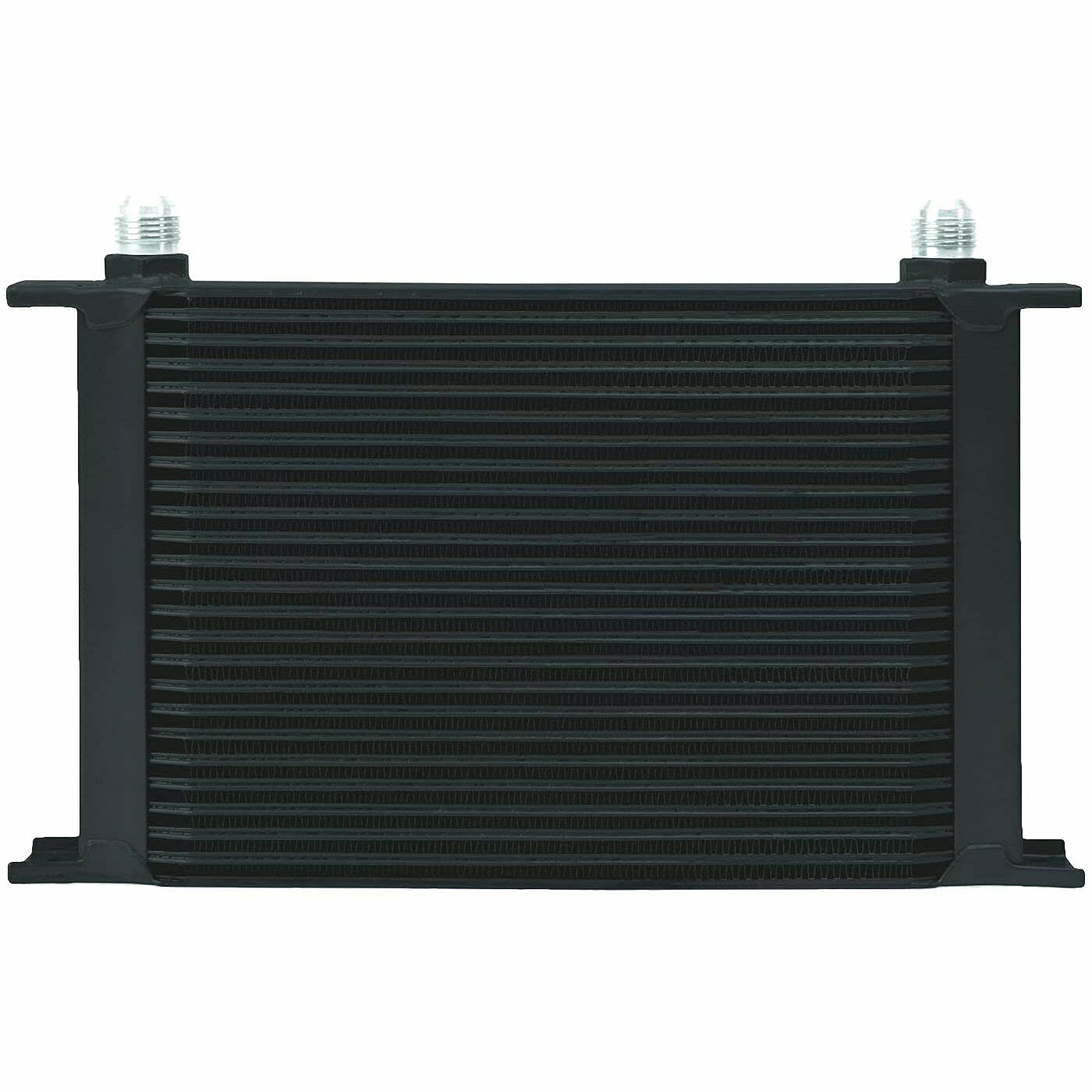

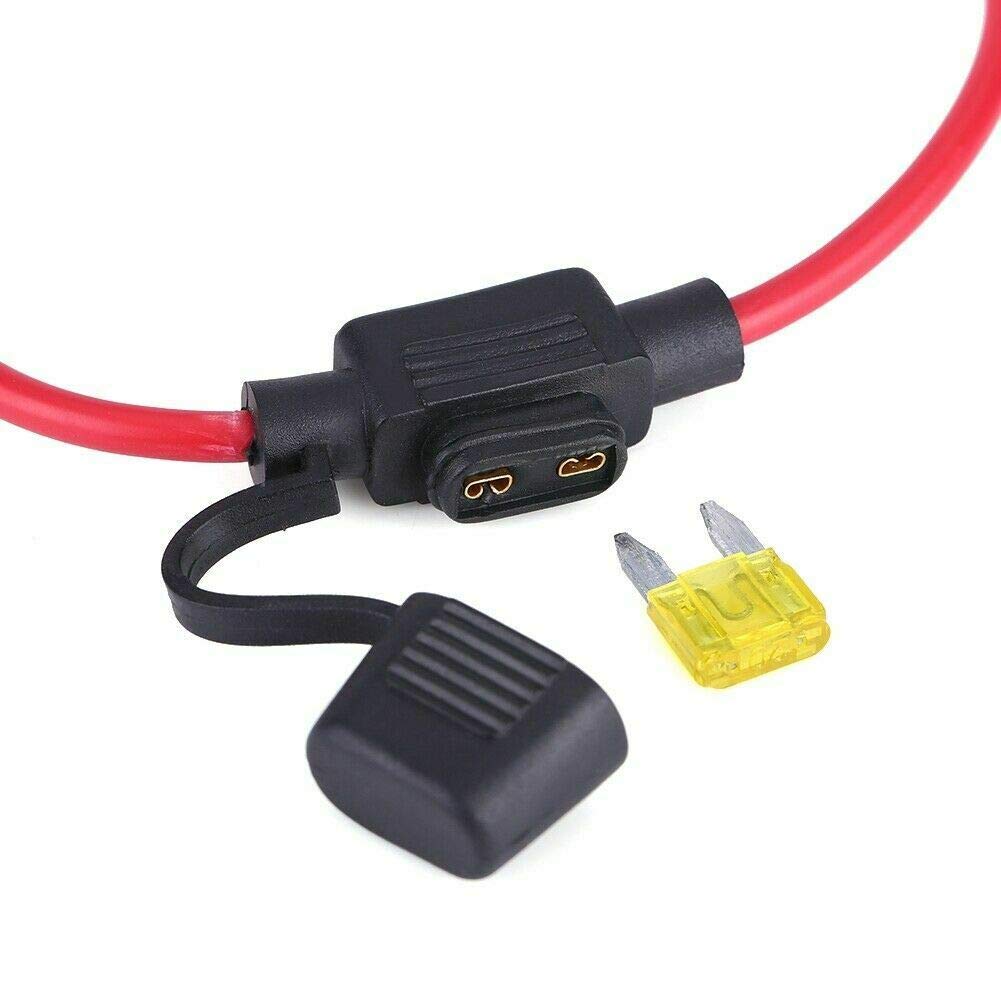

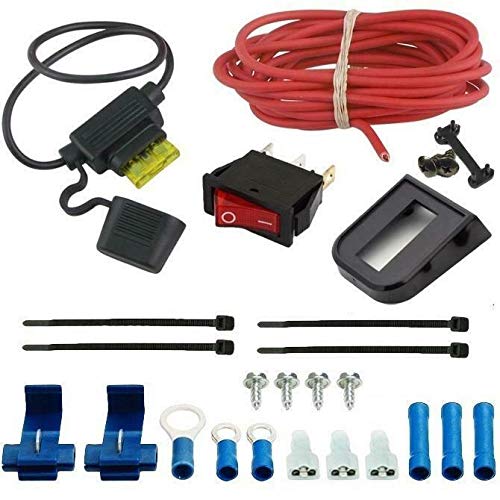

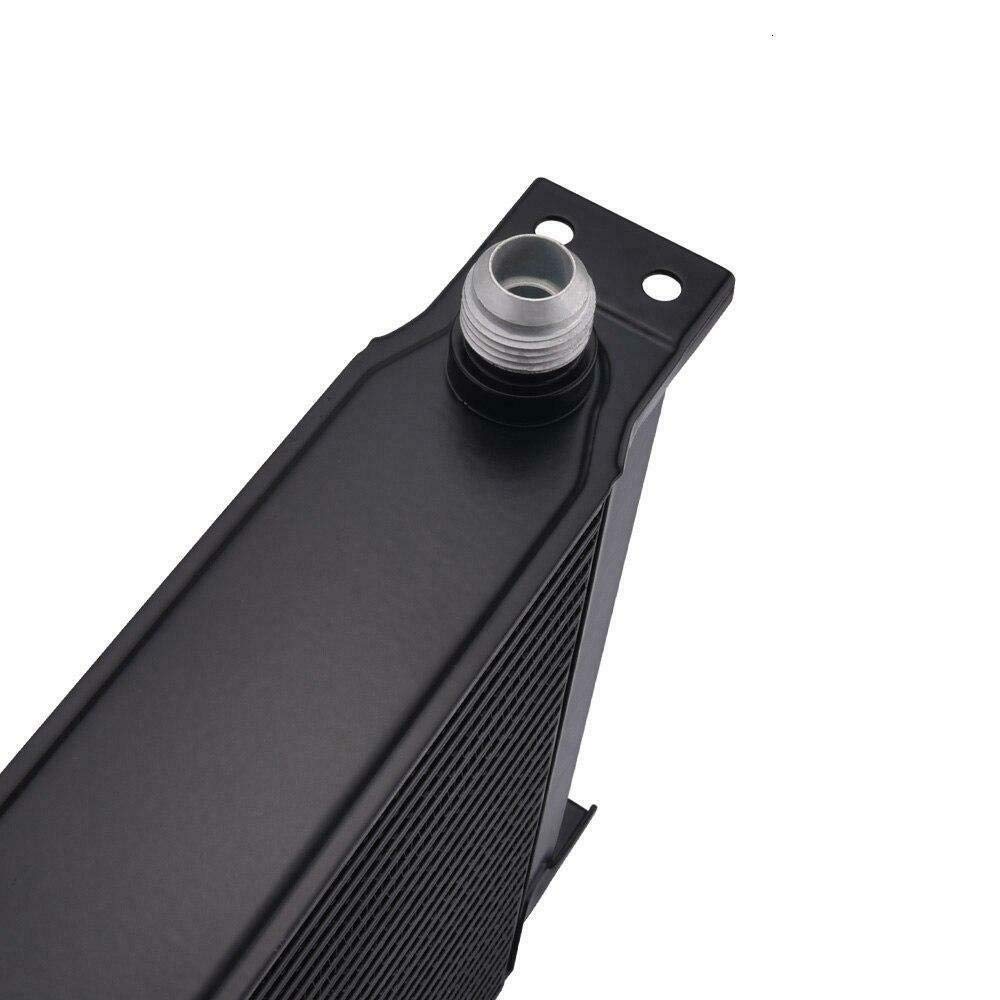

Fluid Cooler:Universal 25 stacked plate aluminum heavy duty engine transmission cooler.Minimal pressure drop and to be used for engine, transmission or fuel cooling.Furnace brazed aluminum construction with 4 integrated mounting brackets.Full 2" deep turbulator-equipped plates and a matte black powder coat finish.Dimensions: 2" x 8.2" x 13" with AN hose fittings and 46000 BTU per hour.Electric Fan:Universal 12 volt high performance 6" inch small electric cooling fan.Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.Configured as an air puller to be on the inside and pull air through.Includes mounting bracket feet and complete install fin tie strap kit.Measures 7.2" x 7" x 2.4" thickness at center and slim 1.4" at edge.Wiring Kit:Universal electric fan or automotive accessory wire harness kit.Safely powers one 12 volt fan or auto accessory without splicing.Maximum 20 amp continuous draw with in-line fuse protection.Standard 7 feet of 14AWG size wiring allows mounting flexibility.Installation instructions and all pictured components included.

Interchange Part Number Derale,Hayden, Row Count 25 Rows

Fitment Type Performance/Custom, Custom Bundle Yes

Mounting Hardware Included Yes, Warranty 2 Year

Type Oil Cooler Kit, Color Black

Brand American Volt
